The Thornton

By: Alan Mascord Design Associates, Inc

734 Sq Ft

1 Bath

2 Stories

11 Garages

Gallery

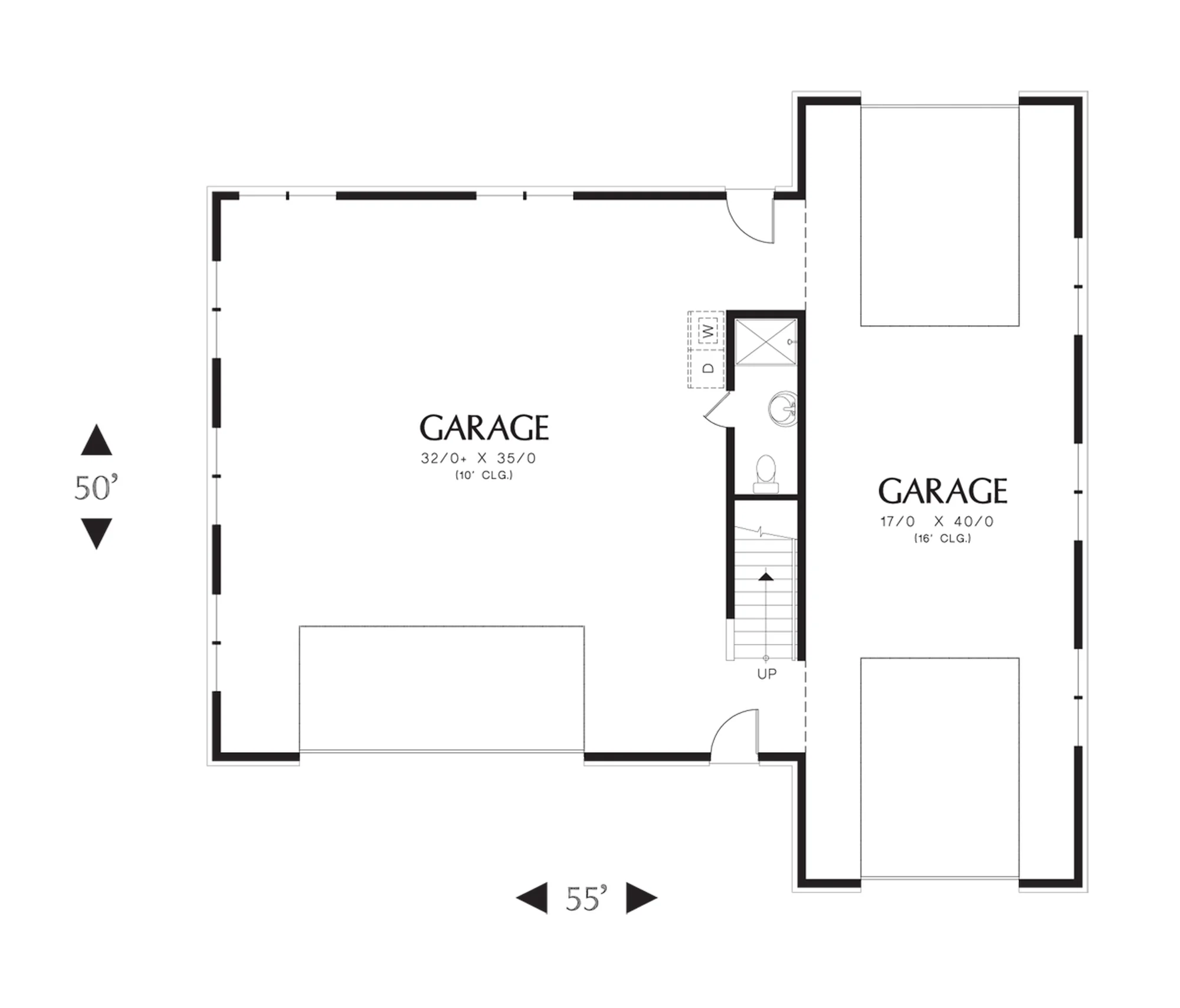

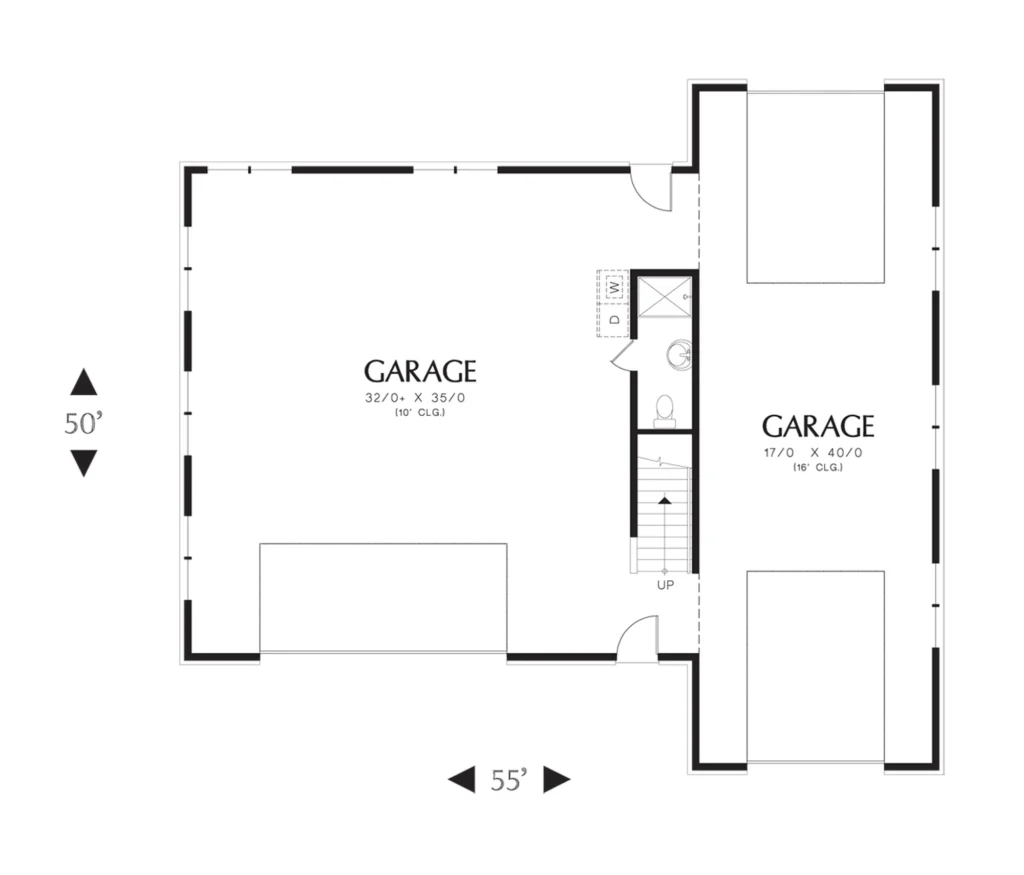

Floor Plans

Plan Features

Heated Space Beds and Baths Dimensions Garage Structure

Total Area 734 sqft

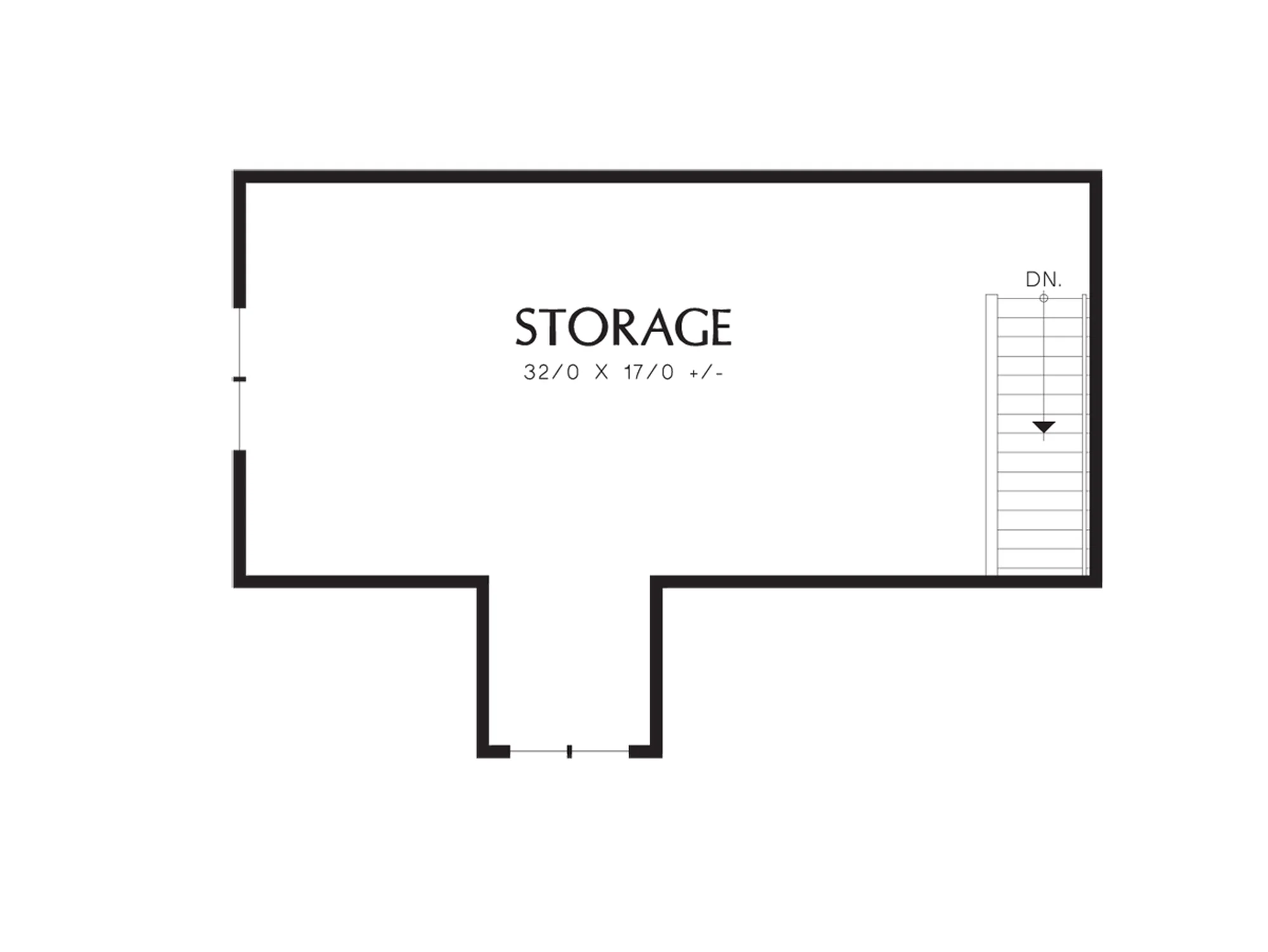

Upper Floor 734

Bathrooms 1

Stories 2

Plan Width 55'-0"

Plan Depth 50'-0"

Height Peak 30'-0"

Garage Area 2232

Garages 11

Garage Location Front

Garage Orientation Straight-On

Main Roof Pitch 12/12

Roof Framing Truss

RECOMMENDED

The Complete Package
for a Smoother Build

PDF Set w/ Engineering

$6,180.00

Everything you need for permitting and construction.

Architectural Drawings
for your selected house plan
Structural Calculation Packet
for support building permit approval
Foundation Type Options
(Crawl Space, Slab, or Basement) based on your project requirements
Permit-Ready Engineering Package
for a smoother construction and approval process

Permit-Ready

Build with Confidence

Complete & Hassle-Free

PDF Set

$1,380.00

Architectural drawings only.

Includes the basic plan package with detailed floor plans, exterior elevations, and building sections. Engineering and structural calculations are not included.

Complete Architectural Drawings

with floor plans, elevations, and sections

Need structural drawings & calculations?

Choose the Engineering package above.
