← Back to All Plans Cottage

Port Institute

By: Alan Mascord Design Associates, Inc

1895 Sq Ft

3 Beds

2 Baths

2 Stories

2 Garages

Gallery

Floor Plans

Plan Features

Heated Space Beds and Baths Dimensions Garage Structure

Total Area 1895 sqft

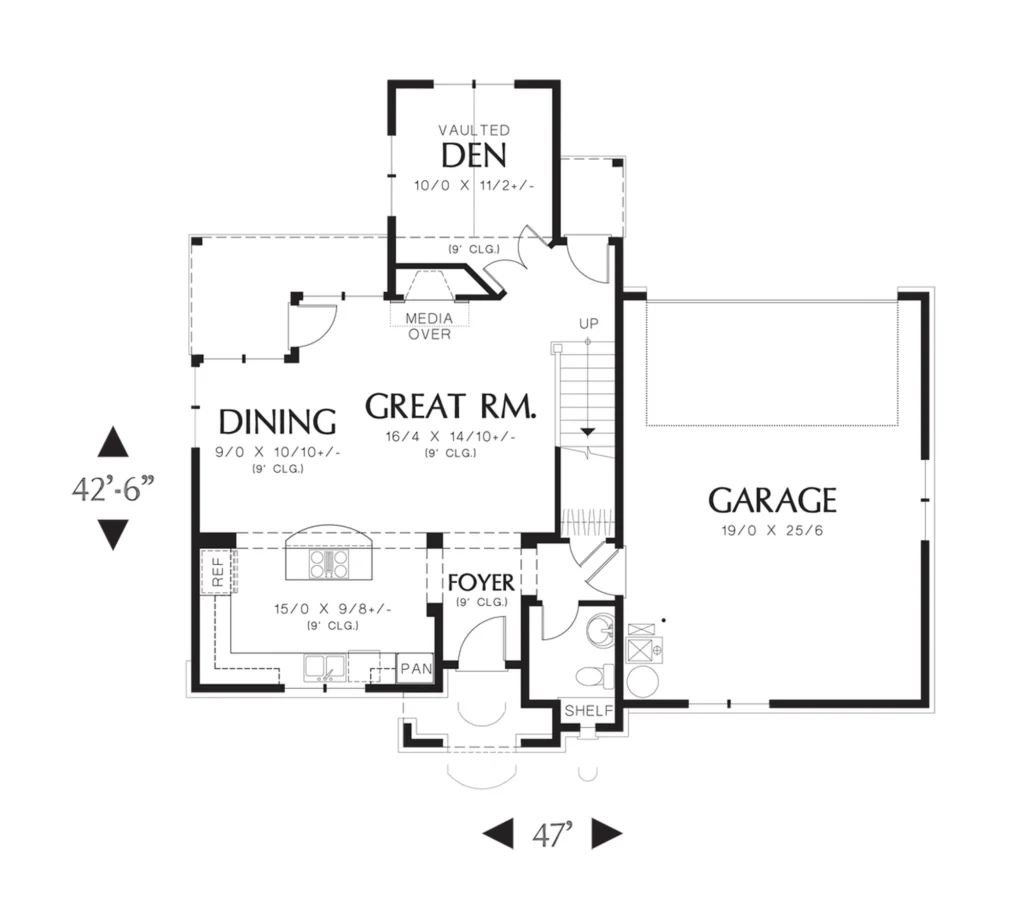

Main Floor 844

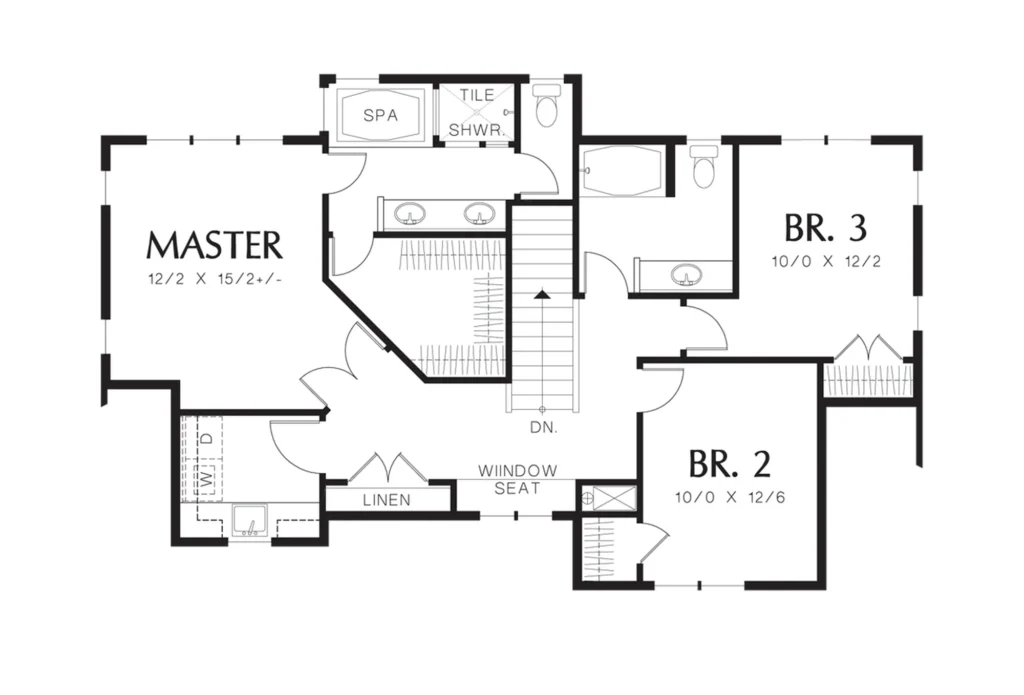

Upper Floor 1051

Bedrooms 3

Bathrooms 2

Stories 2

Half Baths 1

Plan Width 47'-0"

Plan Depth 42'-6"

Height Peak 27'-8"

Height Midpt 22'-6"

Garage Area 517

Garages 2

Garage Location Rear

Garage Orientation Straight-On

Main Roof Pitch 10/12

Roof Framing Truss

RECOMMENDED

The Complete Package
for a Smoother Build

PDF Set w/ Engineering

$5,940.00

Everything you need for permitting and construction.

Architectural Drawings
for your selected house plan
Structural Calculation Packet
for support building permit approval
Foundation Type Options
(Crawl Space, Slab, or Basement) based on your project requirements
Permit-Ready Engineering Package
for a smoother construction and approval process

Add Basement Option +$1,302.00

Permit-Ready

Build with Confidence

Build with Confidence

Complete & Hassle-Free

Complete & Hassle-Free

PDF Set

$1,640.00

Architectural drawings only.

Includes the basic plan package with detailed floor plans, exterior elevations, and building sections. Engineering and structural calculations are not included.

Complete Architectural Drawings

with floor plans, elevations, and sections

Add Basement Option +$502.00

Need structural drawings & calculations?

Choose the Engineering package above.
